Part #337 | Aluminum Radiators

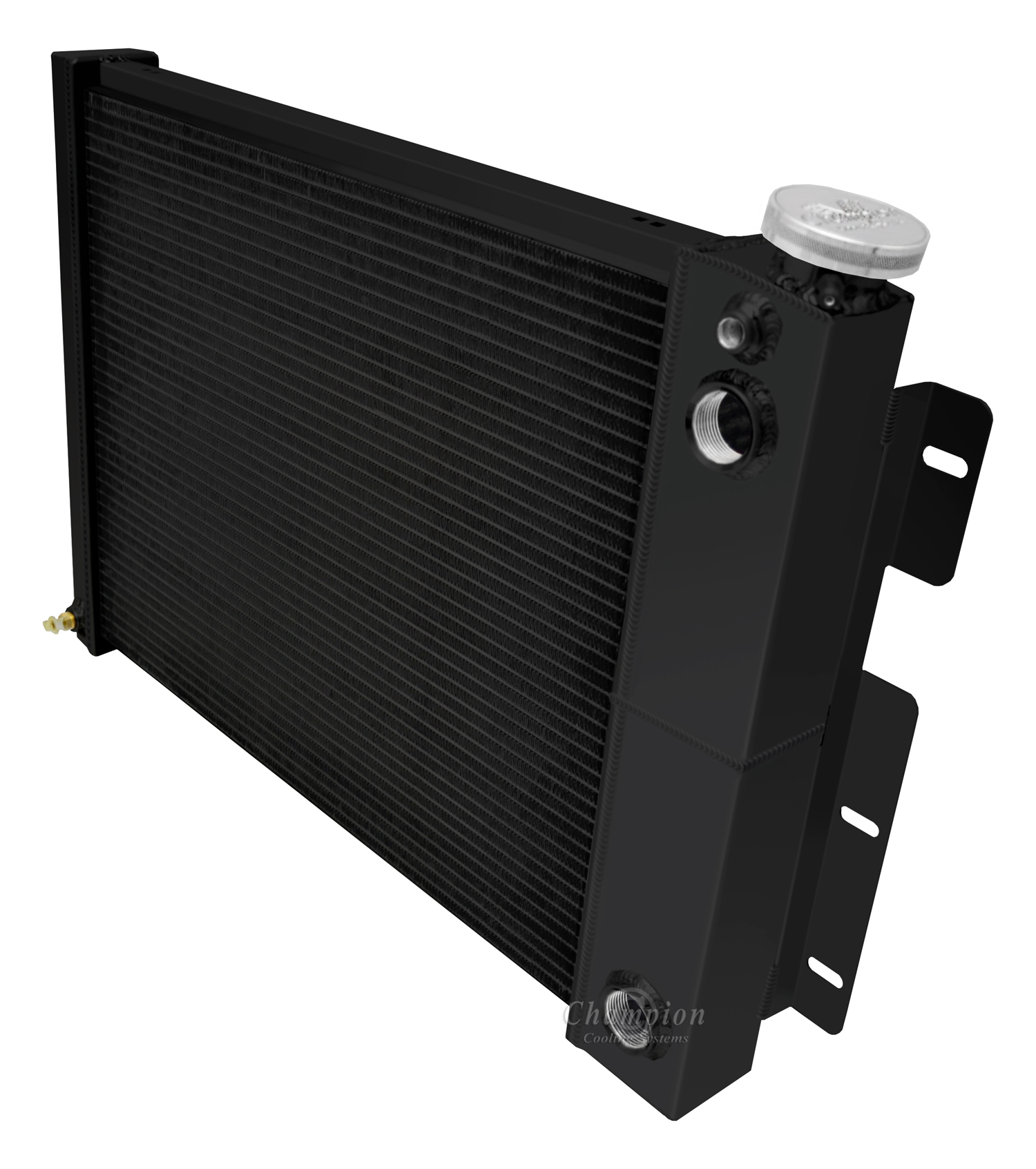

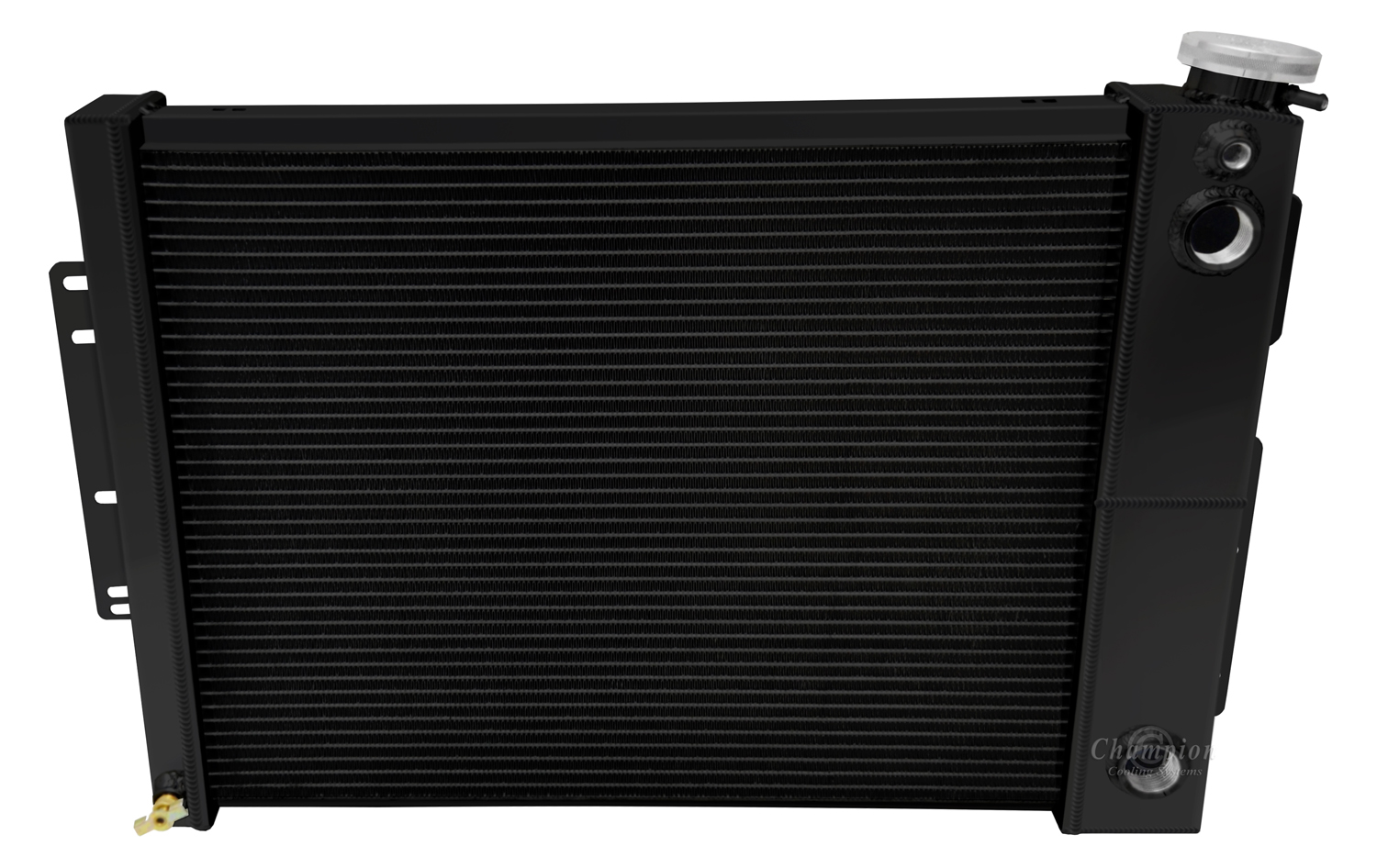

Dual Pass LS Conversion 67-69 Camaro Firebird 20 3/4 (Black Aluminum)
$369.95
Out of stock
Core Type
Finish
Selected: CC337BDP-BLK — Dual Pass, Black
1
Need this part? Email us for availability:sales@instantradiator.com
Lifetime Warranty
Fast Shipping
Direct Fit
Specifications
- Core Rows
- 3
- Fill Neck
- YES
- Tank Width
- 2 3/4
- Hose Fittings
- IN: 16ORB(FEMALE) - OUT: 16ORB(FEMALE)
- Mounting Type
- FLANGES
- Core Thickness
- 2 1/2
- Flow Direction
- CROSS FLOW
- Hose Locations
- IN: PASSENGER - OUT: PASSENGER

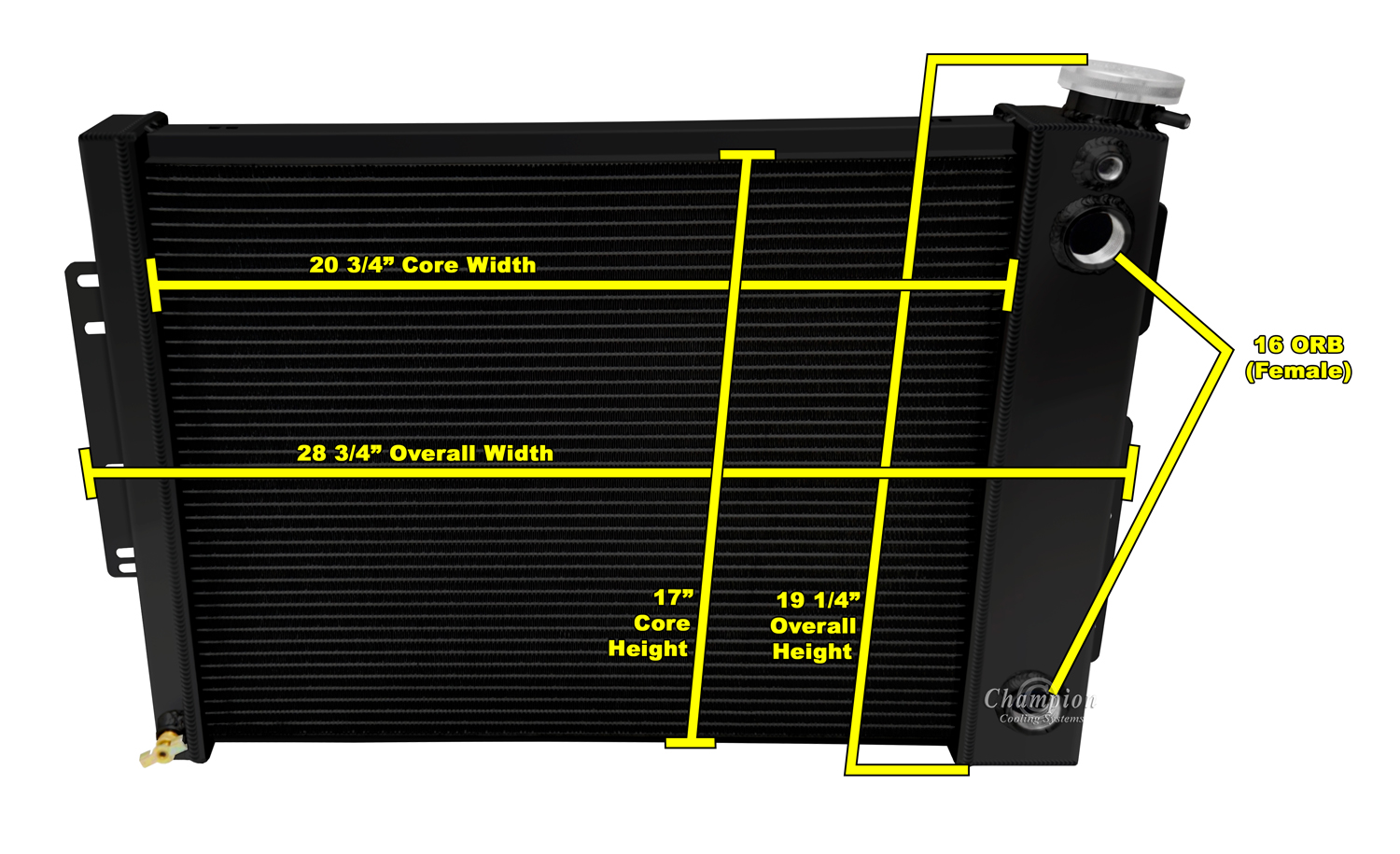

- Core Dimensions
- 17 X 20 3/4
- Overall Dimensions
- 19 1/4 X 28 3/4
Vehicle Fitments
| Year | Make | Model | Engine |
|---|---|---|---|
| 1967 | Chevrolet | Camaro Base | L6 - 4.1L 250ci GAS OHV |
| 1967 | Chevrolet | Camaro Base | L6 - 4.1L 250ci GAS OHV |
| 1967 | Chevrolet | Camaro Base | V8 - 5.3L 327ci GAS OHV |
| 1967-1968 | Chevrolet | Camaro Base | V8 - 5.3L 327ci GAS OHV, L6 - 4.1L 250ci GAS |
| 1967 | Chevrolet | Camaro RS | L6 - 4.1L 250ci GAS OHV |
| 1967 | Chevrolet | Camaro RS | L6 - 4.1L 250ci GAS OHV |
| 1967 | Chevrolet | Camaro RS | V8 - 5.3L 327ci GAS OHV |
| 1967 | Chevrolet | Camaro RS | V8 - 5.3L 327ci GAS OHV |
| 1967-1968 | Chevrolet | Camaro RS | V8 - 5.7L 350ci GAS OHV, L6 - 4.1L 250ci GAS |
| 1967-1968 | Chevrolet | Camaro SS | V8 - 5.7L 350ci GAS OHV, V8 - 5.7L 350ci GAS |
| 1968-1969 | Chevrolet | Camaro RS | V8 - 5.4L 327ci GAS, L6 - 4.1L 250ci GAS OHV |
| 1968-1969 | Chevrolet | Camaro SS | V8 - 5.7L 350ci GAS OHV |
| 1968 | Chevrolet | Camaro RS | L6 - 4.1L 250ci GAS OHV |
| 1968 | Chevrolet | Camaro RS | L6 - 4.1L 250ci GAS OHV |
| 1968 | Chevrolet | Camaro RS | V8 - 5.3L 327ci GAS OHV |
| 1968 | Chevrolet | Camaro Base | L6 - 4.1L 250ci GAS OHV |
| 1968 | Chevrolet | Camaro Base | L6 - 4.1L 250ci GAS OHV |
| 1968 | Chevrolet | Camaro Base | V8 - 5.3L 327ci GAS OHV |
| 1968 | Chevrolet | Camaro Base | V8 - 5.3L 327ci GAS OHV |
| 1968-1969 | Chevrolet | Camaro Base | V8 - 5.4L 327ci GAS, L6 - 4.1L 250ci GAS OHV |
| 1968 | Chevrolet | Camaro RS | V8 - 5.3L 327ci GAS OHV |
| 1969 | Chevrolet | Camaro RS | L6 - 4.1L 250ci GAS |
| 1969 | Chevrolet | Camaro RS | L6 - 4.1L 250ci GAS OHV |
| 1969 | Chevrolet | Camaro RS | V8 - 5.0L 307ci GAS OHV |
| 1969 | Chevrolet | Camaro RS | V8 - 5.0L 307ci GAS |
| 1969 | Chevrolet | Camaro Base | L6 - 4.1L 250ci GAS OHV |
| 1969 | Chevrolet | Camaro Base | L6 - 4.1L 250ci GAS |
| 1969 | Chevrolet | Camaro Base | V8 - 5.0L 307ci GAS OHV |
| 1969 | Chevrolet | Camaro Base | V8 - 5.0L 307ci GAS |
| 1969 | Chevrolet | Camaro Base | V8 - 5.3L 327ci GAS OHV |
| 1969 | Chevrolet | Camaro Base | V8 - 5.4L 327ci GAS |
| 1969 | Chevrolet | Camaro Base | V8 - 5.7L 350ci GAS |
| 1969 | Chevrolet | Camaro Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Chevrolet | Camaro RS | V8 - 5.3L 327ci GAS OHV |
| 1969 | Chevrolet | Camaro RS | V8 - 5.4L 327ci GAS |
| 1969 | Chevrolet | Camaro RS | V8 - 5.7L 350ci GAS OHV |
| 1969 | Chevrolet | Camaro RS | V8 - 5.7L 350ci GAS |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968-1969 | Pontiac | Firebird 350 | V8 - 5.7L 350ci GAS |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1968-1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV, L6 - 4.1L 250ci GAS SOHC |
| 1968 | Pontiac | Firebird Sprint | L6 - 4.1L 250ci GAS |
| 1968-1969 | Pontiac | Firebird Sprint | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird Base | V8 - 5.7L 350ci GAS OHV |
| 1969 | Pontiac | Firebird 350 HO | V8 - 5.7L 350ci GAS |
| 1969 | Pontiac | Firebird Sprint | L6 - 4.1L 250ci GAS |
| 1969 | Pontiac | Firebird Base | L6 - 4.1L 250ci GAS SOHC |
